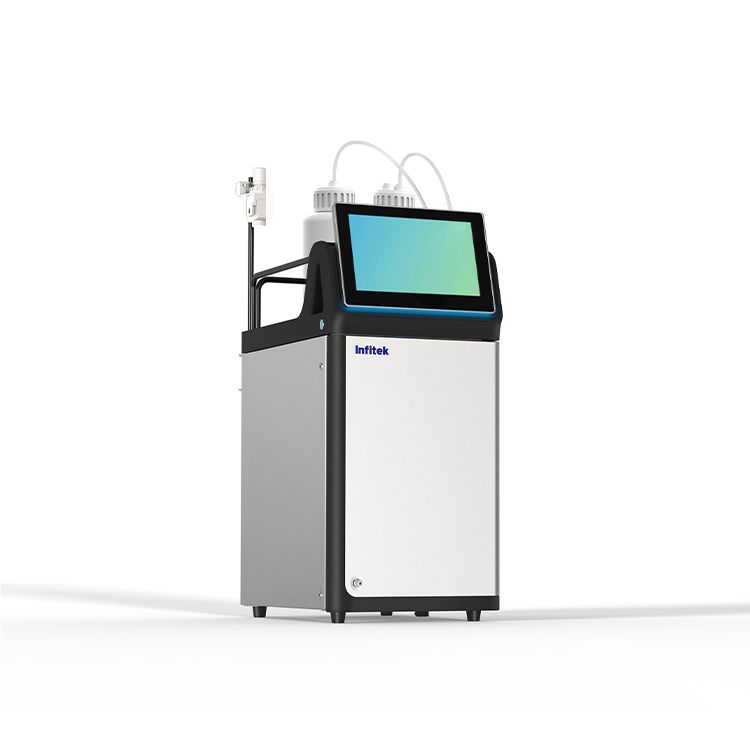

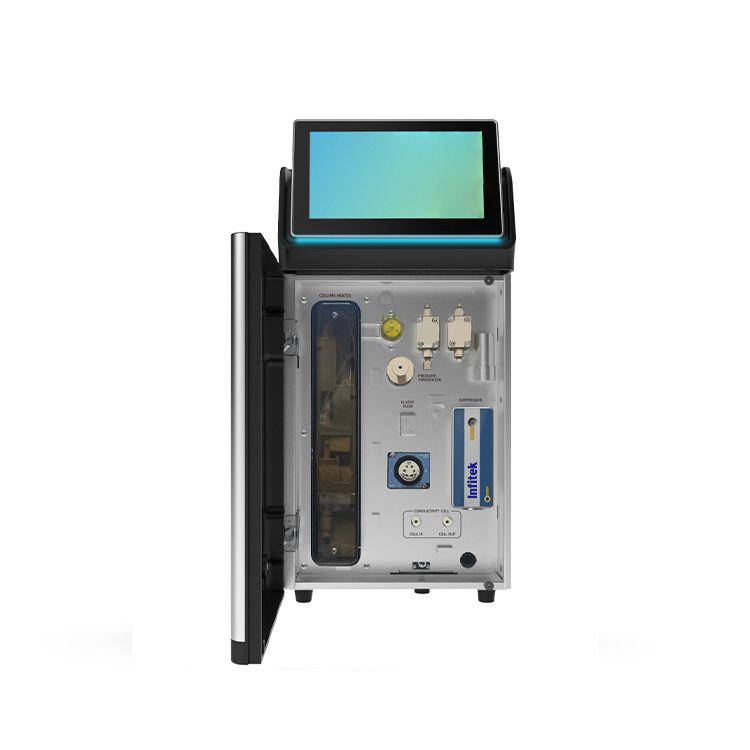

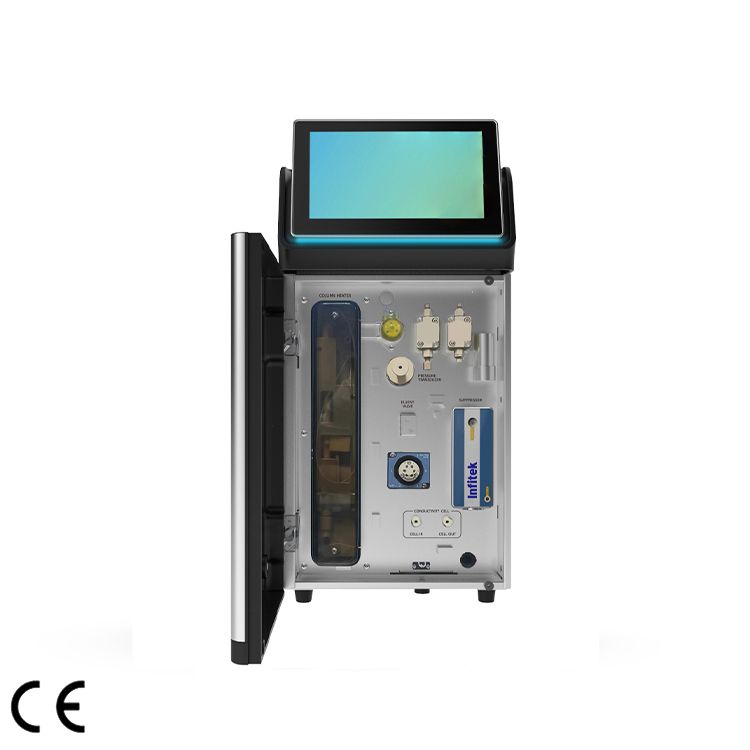

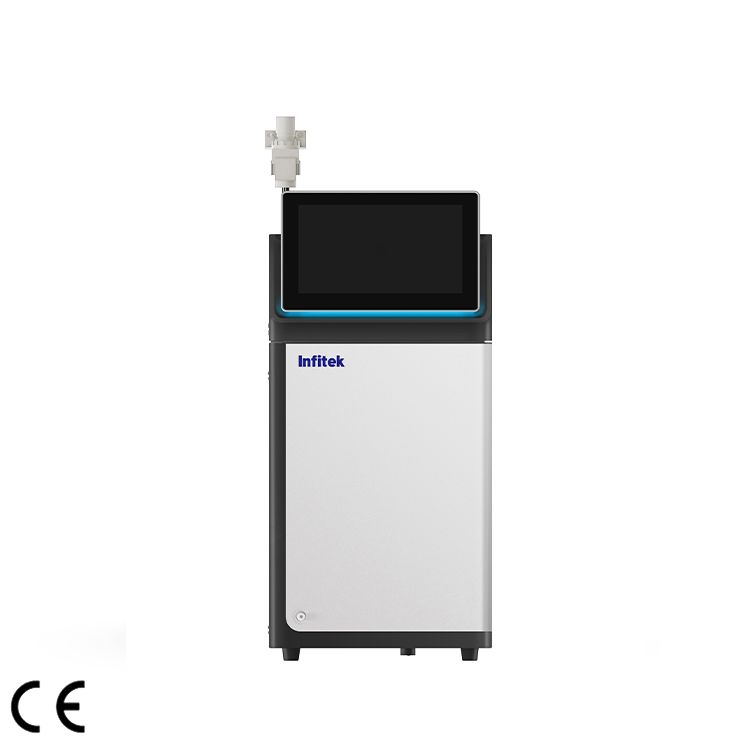

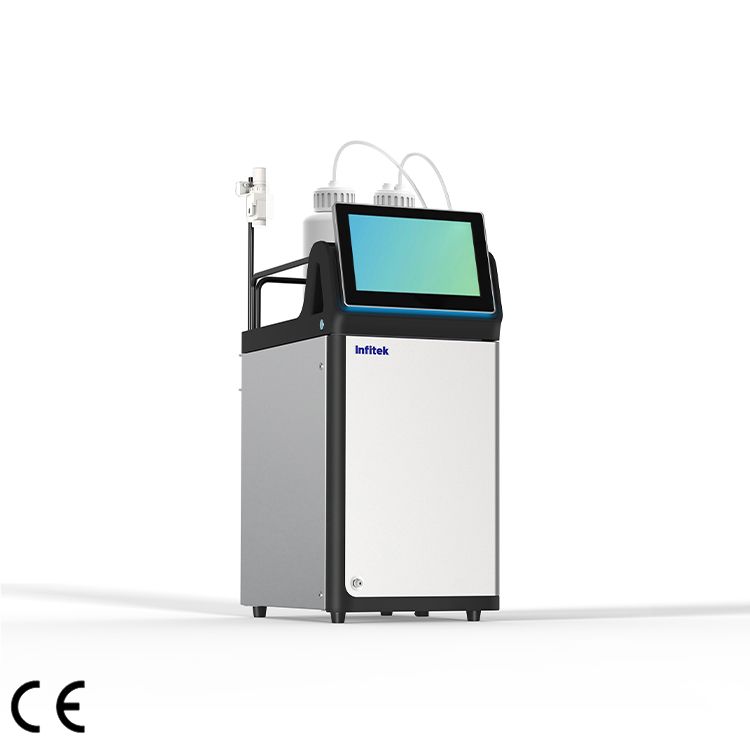

Ion Chromatograph, IC-W6200

Description

The intelligent integrated ion chromatograph can be remotely controlled, instructed and software updated through Ethernet connection. It features one-button intelligent maintenance, offering high precision, high stability, and intelligence, all of which can effectively improve laboratory productivity.

Features

• Leakage alarm

When leakage is detected, the instrument will promptly detect and automatically alarm, and can automatically shut down;

• Auto range detector

Based on a DSP architecture, the output is direct conductivity, with a detection frequency up to 100Hz, flexible and adjustable, and capable of auto-ranging.

• Simple piping layout

The piping design is simple and intuitive, making it easy to operate and maintain, which improves work efficiency.

• Online emptying

Automatic evacuation of the high-pressure flow path can be realized, reducing manual operation.

• Peristaltic pump post-pump cleaning function

Used for cleaning the plunger rod of the chromatography pump to reduce the precipitation of buffer salts and avoid wear of the plunger pad and gem rod.

• High-definition 10-inch touch screen

The instrument flow path and the operating status of each component are displayed in real time, with one-button operation and viewing at any time.

• Consumable ID recognition and life monitoring

It can realize ID coding and lifetime monitoring of consumables such as suppressors, provide effective reminders, and avoid the reduction of detection efficiency caused by consumables.

Key Component Advantages

Precision ion chromatography pump made of PEEK

• Full PEEK material pump head, resistant to acid, alkali and reverse phase organic solvents, preventing metal contamination;
• Optimized floating mechanical design extends the lifetime of the pump and the pressure transducer, thereby reducing instrument operation costs and the frequency of maintenance;
• The intelligent electronic pulsation suppression technology supplies eluent with high precision, low pulsation, and low drift;
• Equipped with high and lowpressure protection mechanisms, it instantly safeguards the entire analytical system;

All-plastic non-metallic flow path

• All PEEK pumps;
• PEEK motorized injection valve;
• Eluent generator cartridge, liquid pipeline and connector are made of acid and alkali corrosion resistant materials such as PEEK, PTFE, PP, etc;
• All-plastic colorful liquid pipelines are convenient for customers to identify the operation;

Highly precise temperature control for the whole system

• The built-in column oven and high-efficiency heat exchange technology ensure the heating efficiency and temperature control accuracy of the chromatographic column, ensuring the stability of the results.
• Lysate(Eluent) preheating function: Lysate (Eluent) and sample are preheated before entering the column to avoid the negative effects of poor reproducibility and peak spreading (such as repeatability and peak diffusion) caused by temperature difference;
• The high-precision, efficient temperature control and temperature compensation functions of the conductivity cell ensure the stability and high sensitivity of the detection, provide a wide dynamic detection range, and achieve simultaneous analysis of highand low content components.



Electrolytic regenerated membrane suppressor

• Electrolytic self-regenerating membrane suppression method, reagent-free design, without the requirement of additional acid and alkali, without regeneration;
• Provides continuous and stable suppression capability, greatly improves analytical stability, and reduces system noise and drift;
• Fast balance time, no risk of membrane drying and cracking, long service life;
• Special suppressors are available for both anion and cation analysis;

One-button intelligent health maintenance

• One-button rinsing: The system enables automatic rinsing after analysis, ensuring effective cleaning, reducing time costs, and improving work efficiency;
• One-buttonmaintenance: With one-button operation, the system automatically performs instrument maintenance without the need for manual supervision or intervention, prolonging the instrument’s lifespan;

Environmentally friendly, reagent-free ion chromatography

• The «Water Only» eluent generator harnesses electrodialysis technology to produce the reluent on-demand, eliminating manual preparation;
• A comprehensive range of eluent generators includes varieties of generating hydroxide, carbonate, and methanesulfonate, catering to meet various experimental analyzing needs;
• The system achieves gradient elution under isocratic pump conditions, reducing costs, significantly improving the reproducibility of experimental results, and reducing labor and environmental pollution;

Autosampler

AS2800 Series Autosampler Equipped with sample cover to effectively avoid environmental pollution; Supports single-channel injection and dual-channel injection for analysis; Supports large sample volume(2mL); Supports different sample trays replacement; Can be used for the analysis of trace sample concentration; With a variety of wash modes, such as coarse washing, fine washing, and so on;	AS3110 Series Autosampler Supportsmultiple sample vials of different volumes; Different sample trays up to 120 sample well positions available; Supportsauto dilution for calibration curve measurement with a single standard sample; Supports temperature control for sample stability; Supportsmultiple injection mode (push mode, pull mode, single channel sampling, dual channel sampling);

Smart Lab Chromatography Workstation
