Integrated LCD screen for real-time display of objective magnification, brightness, voice control, and ECO mode, ensuring total control of the instrument status.
Infinity-corrected optical system for superior image quality.
Inward-facing quintuple coded nosepiece and F.N.23 wide-field eyepieces.
Upgradable to motorized microscope systems and fluorescence observation modes.

Sample Images

Specification

Model	MSC-B45
Optics	Infinity-corrected optical system; bright field observation; upgradable to phase contrast, fluorescence, dark field, etc.
Observation Tube	Tilting trinocular, Interpupillary 50-75mm
Viewing Head	Siedentopf head, inclined at 30°
Eyepiece	Wide-field WF10X / F.N. 23; Diopter adjustable
Objective	Plan Achromatic Objectives: A-plan 4X/10X/40X/100X (Other types and magnifications optional)
Nosepiece	Inward-facing quintuple coded nosepiece; features brightness memory and brightness adjustment for different magnifications
Stage	Mechanical stage, Size: 232 × 158mm, Moving range:80×50mm
Focusing	Coaxial coarse and fine adjustment, focusing range 25mm, fine division 0.002mm
Transmitted Illumination	Abbe condenser N.A. 1.1; 3W LED light source with continuously adjustable color temperature to provide better illumination for various samples
Display	Integrated LCD screen; Real-time display of current objective magnification, brightness level, voice broadcast status, and ECO mode
Main Body	ECO sensing function: Auto-off when user is away, auto-on when user returns; improves convenience and energy efficiency.
	Supports powering via external power banks, expanding the microscope’s application range and usage scenarios.
	Supports USB programmable control, allowing for expansion of software-side control and integration.
	Optional voice broadcast function provides real-time announcements of objective magnification when switching, ensuring effortless and convenient operation.

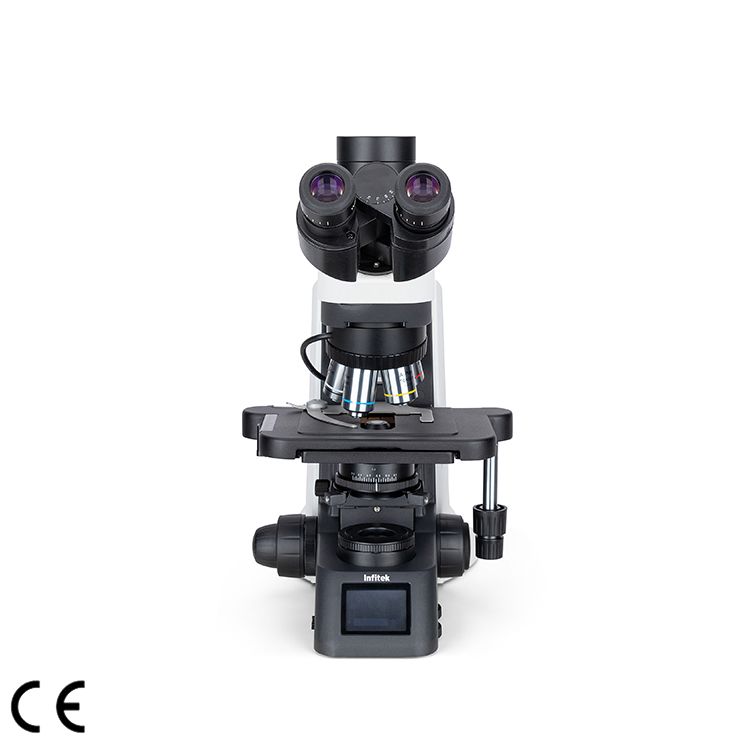

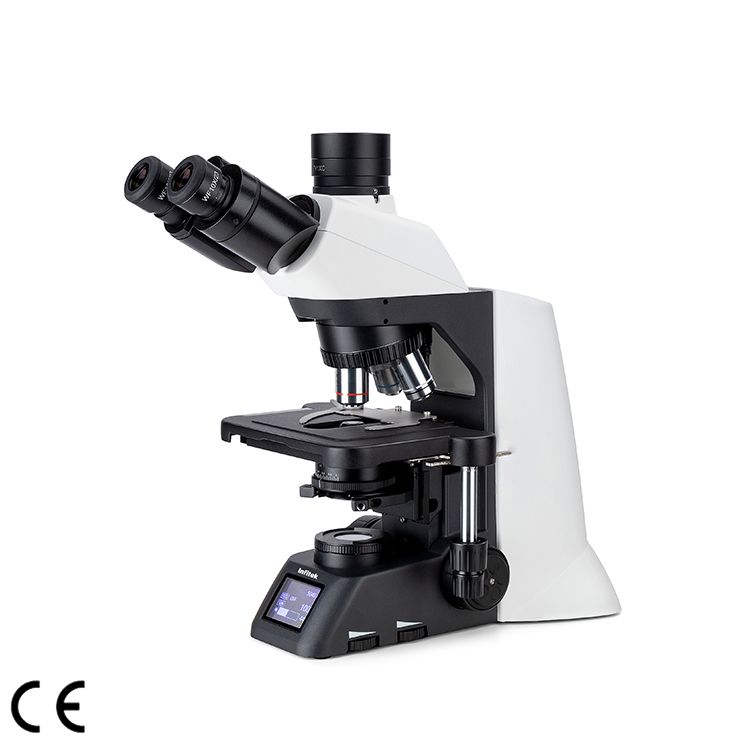

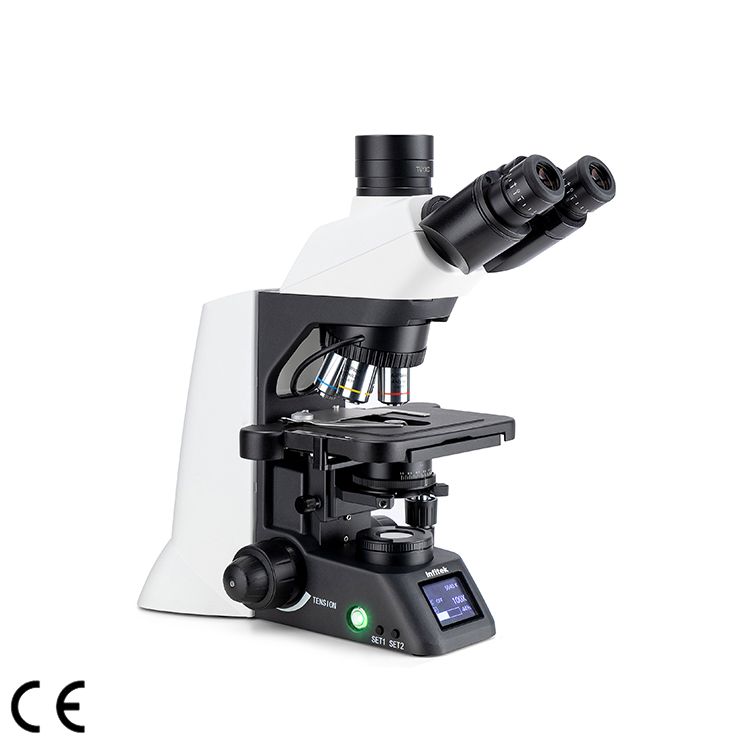

Biological Microscope, MSC-B45
