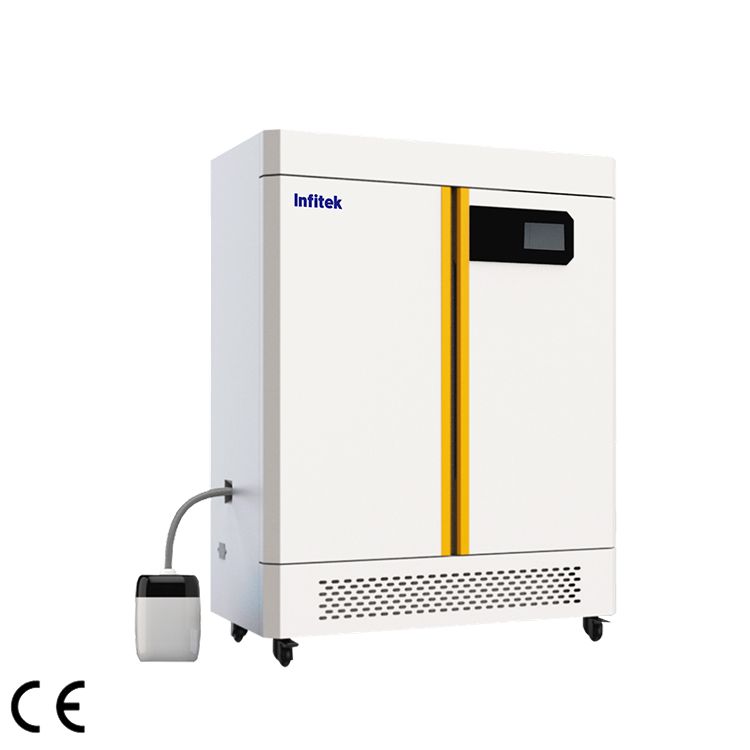

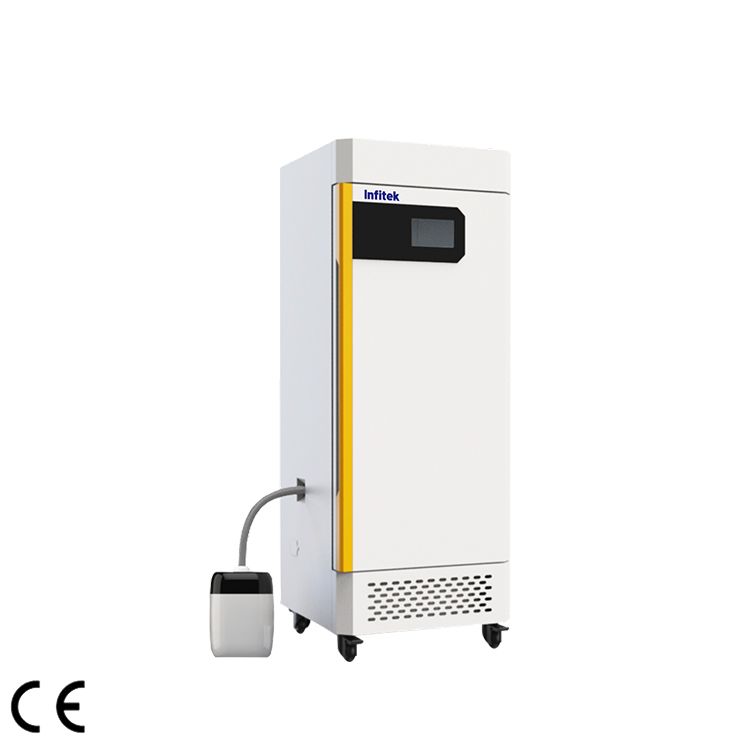

Climate Chamber, ICB-CC420T, ICB-CC1000T

Description

The Intelligent Artificial Climate Chamber can accurately control temperature, humidity, illuminance, and wind speed.

Features

• Multiple Safety Protection

Leakage protection, fault circuit protection, over-temperature protection, compressor overload protection, and current overload protection.

• Abnormal Alarm

Door open timeout alarm, temperature over-limit alarm, and sensor failure alarm.

• Sterilization

UV sterilization, automatically turning off after the set time.

• Intelligent Control

Accurate control of temperature and light intensity, providing an ideal experimental environment.

• Power-Off Data Protection

Resumes previous state after power restoration.

• Automatic Timed Defrost

On-demand defrosting with precise, continuous temperature control.

Function Introduction

(1) Temperature& Humidity

• Precise Control

The chamber utilizes high-precision sensors combined with an intelligent PID algorithm to accurately control temperature fluctuations, providing a stable and reliable environment for experiments.

• Ultrasonic Humidification

Equipped with an integrated humidification system and an internal circulation design, the chamber ensures convenient water replenishment and long-term, stable operation.

(2) Air Circulation

• Internal & External Circulation

Continuous convection exchange with manually adjustable ventilation control.

• Internal Circulation

Supports segmented wind speed adjustment within the range of 30% to 100%.

(3) IntelligentControl

• Programming

Supports gradient control of time, humidity, temperature, illumination, and wind speed, simulating various climatic conditions such as day and night to meet different plant growth requirements.

Specifications

Model	ICB-CC420T	ICB-CC1000T
Capacity	420L	1000L
Illumination Method	Three-sided illumination
Illumination Range	0~22,000 Lux (higher illumination can be customized)
Illumination Levels	0 ~ 100%
Temperature Control Range	0 ~ 65°C (Lights OFF) 10~50°C (Lights ON)
Humidity Control Range	50～95% RH (Chamber temp.: 10-50℃) 50～80% RH (Chamber temp.: 50-55℃) 50～60% RH (Chamber temp.: 55-60℃) <50% RH (Chamber temp.: 60-65℃)	50～95% RH (Chamber temp.: 10-50℃) 50～70% RH (Chamber temp.: 50-55℃) <50% RH (Chamber temp.: 55-60℃) <40% RH (Chamber temp.: 60-65℃)
Temperature Fluctuation	±0.1℃ (Tested at chamber temperature 25.0℃, humidity 50%RH)	±0.3℃ (Tested at chamber temperature 25.0℃, humidity 50%RH)
Temperature Uniformity	≤±0.5℃ (Tested at chamber temperature 25.0℃, humidity 50%RH)	≤±1℃ (Tested at chamber temperature 25.0℃, humidity 50%RH)
Humidity Fluctuation	±2%RH (Tested at chamber temperature 25.0℃, humidity 50%RH)	±3%RH (Tested at chamber temperature 25.0℃, humidity 50%RH)
Programming Segments	30 experimental programs can be stored, each with 1~99 programmable segments
Internal Dimensions	635*560*1165mm	1415*560*1165mm
External Dimensions	762*765*1900mm	1552*765*1940mm
Electricity	AC 220V/50Hz, 10A	AC 220V/50Hz, 16A
Max. Power Consumption	1200W	2500W
Communication Interface	Standard RJ45 Ethernet port, Wi-Fi, USB data port, and IoT functionality
