- Capacity: 30L, 45L, 65L, 85L, 125L, 230L
- Temperature Range: RT+5-120℃
- Exhaust Hole: φ35mm top (with function of test hole)
- Independent high-precision digital temperature limiter

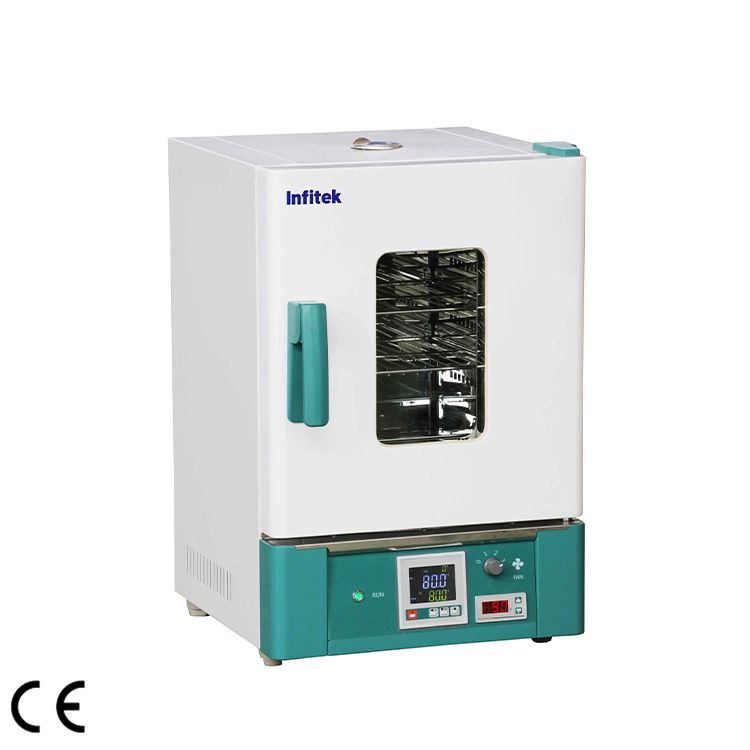

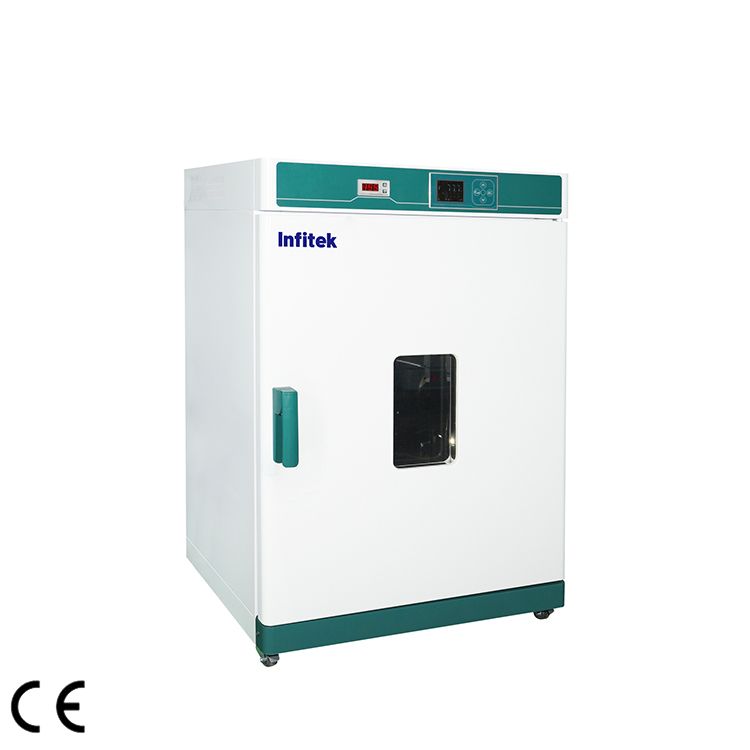

Heating Incubator, ICB-F Series
Descripción
- Unique vertical dual-duct system with horizontal air circulation.
- 4-level 3-speed adjustable fan, equipped with LED operation indicator.
- Over-temperature protection system: The red LED indicator illuminates while the heating circuit is cut off to enhance product safety when the chamber temperature exceeds the alarm value.
- Independent high-precision digital temperature limiter.
Specifications
| Model | ICB-F30 | ICB-F45 | ICB-F65 | ICB-F85 | ICB-F125 | ICB-F230 | ||
| Capacity (L) | 30 | 45 | 65 | 85 | 125 | 230 | ||
| Circulation Mode | Forced convection | |||||||
| Dimension
(W*D*H) |
Internal (mm) | 310*310*310 | 350*350*350 | 400*360*450 | 450*420*450 | 500*450*550 | 600*500*750 | |
| External (mm) | 460*510*695 | 500*550*735 | 550*550*840 | 590*610*830 | 636*680*915 | 735*835*1115 | ||
| Temperature | Range (℃) | RT+5-120 | ||||||
| Fluctuation (℃) | ±0.5 | |||||||
| Resolution (℃) | 0.1 | |||||||
| Uniformity (℃) | ±1.0 | |||||||
| Sensor | PT100 | |||||||
| Controller | Temp. control mode | Dual-stage Intelligent PID | ||||||
| Temp. setting mode | Touch button setting | |||||||
| Temp. display mode | Measured temperature: Upper LCD; Set temperature: Lower LCD | |||||||
| Timer | 0-9999min (with timing wait function) | |||||||
| Operation function | Fixed temperature operation, Timing function, Auto stop | |||||||
| Additional functions | Digital temperature limiter, 4-level 3-speed adjustable fan (No fan speed control for Model 230),
Sensor deviation correction, Temp. overshoot self-tuning, Internal parameter locking, Power-off parameter memory |
|||||||
| Structure | Inner chamber | Mirror stainless steel | ||||||
| Outer shell | Cold-rolled steel with electrostatic spray coating | |||||||
| Insulation layer | High-quality foam board | |||||||
| Heater | Stainless steel electric heating tube | |||||||
| Exhaust hole | φ35mm top (with function of test hole) | |||||||
| Shelf Number | 5 | 6 | 8 | 8 | 11 | 17 | ||
| Load per Shelf | 15kg | |||||||
| Shelf Spacing | 40 mm | |||||||
| Safety Device | Independent digital temperature limiter, Over-temperature audio-visual alarm | |||||||
| Electricity | Voltage / Frequency | AC 220V, 50/60Hz | ||||||
| Current rating | 1.8A | 2.3A | 3.2A | 4.1A | 5A | 6.8A | ||
| Power rating | 0.4kW | 0.5kW | 0.7kW | 0.9kW | 1.1kW | 1.5kW | ||
| Package Dimension (W*D*H) (mm) | 540*575*855 | 580*615*895 | 635*625*995 | 680*685*1000 | 710*730*1100 | 857*885*1287 | ||
| N.W. / G.W. (kg) | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | ||
| Accessory | Shelf fame | 4 | ||||||
| Shelves | 2 | |||||||
| Optional Accessories | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller | |||||||
