- Capacity: 150L, 250L, 400L, 500L, 1000L
- Temperature Range: 10～65℃
- Humidity Range: 15～95%RH
- Advanced inverter cooling technology
- Five layers of protection, including critical leakage protection

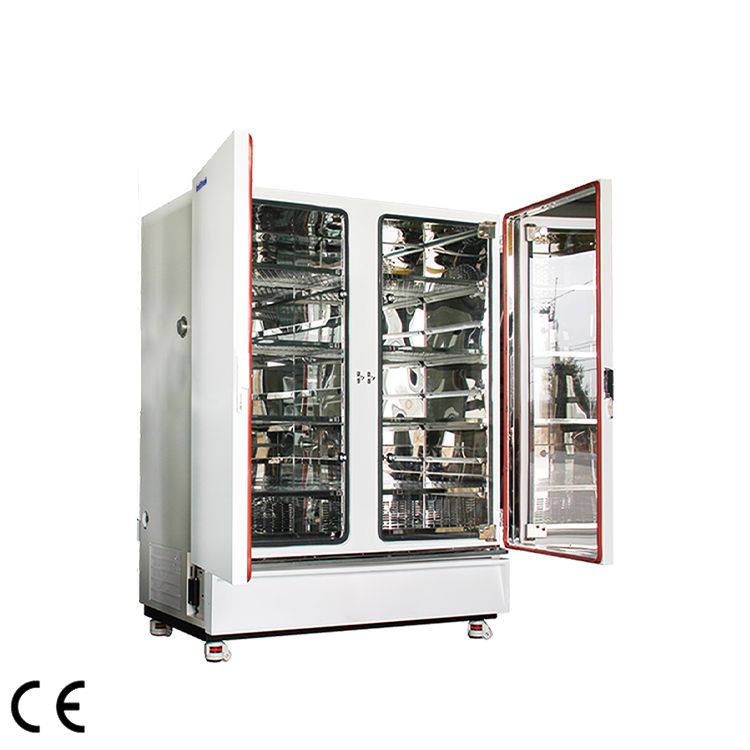

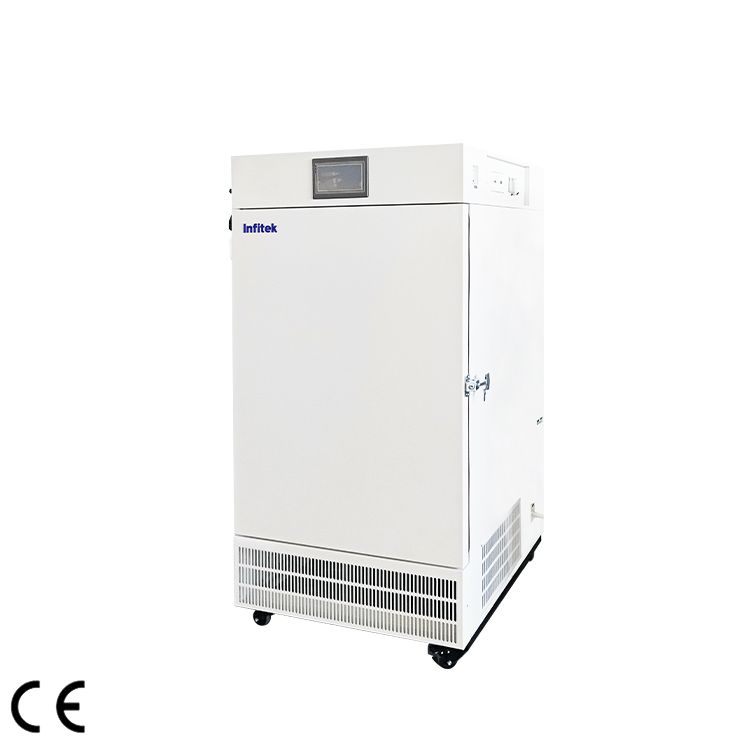

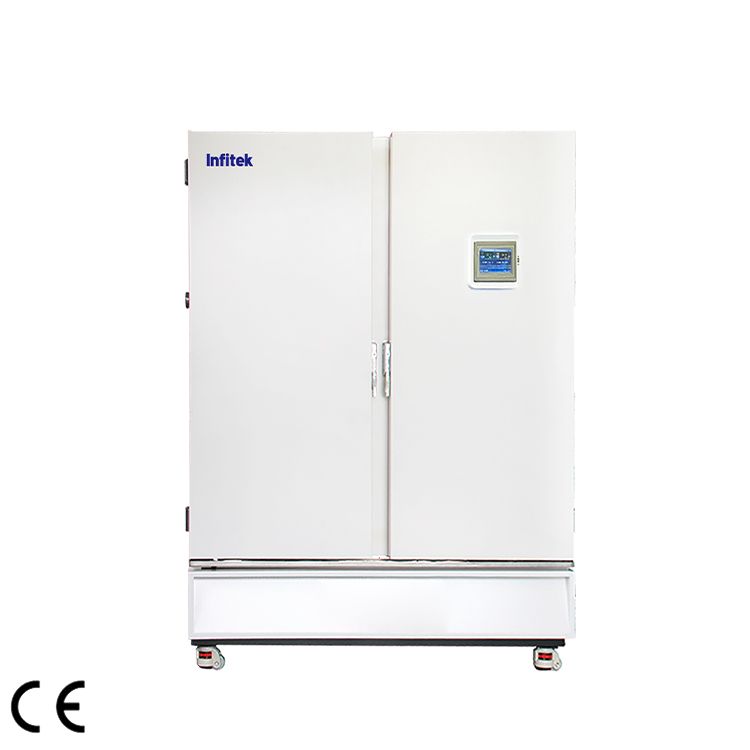

Medicine Stability Testing Chamber, ICB-MS-HL Series
Descripción
- Performance: Exceptional uniformity enables the chamber to meet the requirements of ICH stability test under full load even after years of use.
- Reliability: Offers superior fluctuation and uniformity.
- Intelligence:In addition to more stable control, enhanced maintenance reminders have been added.
- Efficiency: Utilizing advanced inverter cooling technology, energy consumption is reduced by more than 50% compared to the previous generation.
- Safety: Five layers of protection, including critical leakage protection.
Specifications
| Model | ICB-MS150-HL | ICB-MS250-HL | ICB-MS400-HL | ICB-MS500-HL | ICB-MS1000-HL |
| Type | Single-door | Single-door | Single-door | Single-door | Double-door |
| Shelf (Standard) | 3/6 | 3/7 | 3/10 | 4/11 | 4/8 |
| Capacity (L) | 150 | 250 | 400 | 500 | 1000 |
| Temperature Range (℃) | 10～65 | ||||
| Temperature Fluctuation (℃) | ±0.5 | ||||
| Temperature
Uniformity (℃) |
±1.0 | ||||
| Humidity Range (RH) | 15～95% | ||||
| Humidity Fluctuation | ±2.0% | ||||
| Humidity Uniformity | ±3.0% | ||||
| Electricity | 220V, 50Hz/60Hz | ||||
| Power (kW) | 1.5 | 1.8 | 2.0 | 2.2 | 3.0 |
| Water Source | Purified water, Resistivity≥0.5MΩ·cm | ||||
| Ambient Temperature
(℃) |
5 ~35 | ||||
| Network | Connection via network port | ||||
| Internal
Dimensions (W*D*H) (mm) |
600*405*625 | 600*500*830 | 600*700*950 | 680*680*1080 | 1400*510*1400 |
| External Dimensions
(W*D*H) (mm) |
780*830*1480 | 780*880*1650 | 780*1060*1750 | 860*1050*1850 | 1615*925*1975 |
Hardware Configuration
| Compressor | Imported variable frequency compressor, energy saving over 50% |
| Evaporator | Coating process with doubled corrosion resistance |
| Humidifier | Adopts PTC heating element and features automatic protection function |
| Controller | 7-inch color programmable touch screen |
| Three-level authority: Configurable for more levels | |
| Audit trail: Storage of operation records | |
| Frequency conversion: Display the frequency output | |
| Prompt Reminder: Periodic maintenance reminders | |
| Humidity Sensor | High-precision capacitive |
| Genuine imported | |
| Water System | Automatic water circulation |
| Equipped with water level scale | |
| Alarm System | On-site audible and visual alarm |
| Structural Material | Interior: 304 stainless steel |
| Polyurethane foam insulation | |
| Double Door | Inner door: Tempered glass |
| With door heating to prevent condensation | |
| Safety Protection | Five layers of protection |
| Including independent over-temperature protection |
Software Configuration
| Data Storage | Built-in storage hard drive, USB export |
| More than 5 years | |
| Data Printing | Dot matrix micro-printer |
| Long-term storage | |
| Data Network Version | Server version |
| Complies with FDA 21 CFR Part 11 |
