- Reaction Volume: 10~100μL
- Temperature Range: 0~100°C (Resolution: 0.1°C)
- Ramp Rate: 8.0°C/s
- Temperature Control: Block/Tube
- Sample Capacity: 96-well plate, 12*8 strips, 96*0.2ml single tubes

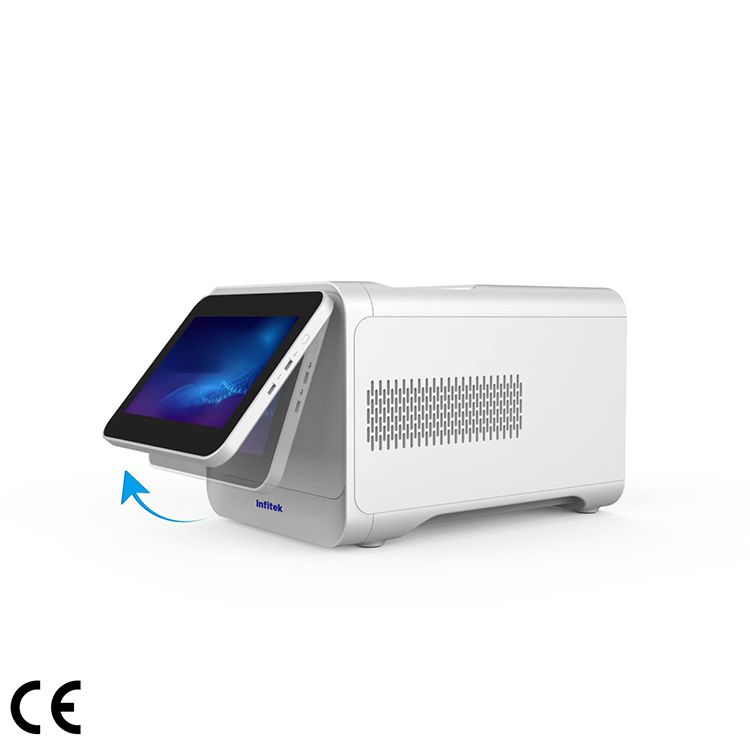

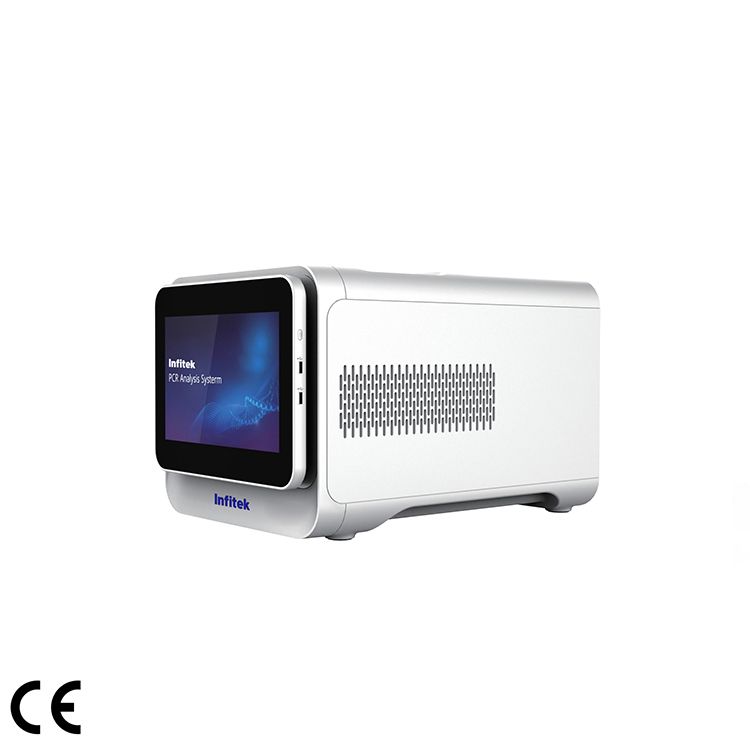

Real-time PCR System, PCR-Q96-6P
Descripción
Adhering to the principles of high efficiency and quality, this system integrates an advanced temperature control system, a precision optical system, and powerful software analysis functions. It supports a wide range of applications, such as qualitative/quantitative analysis, genotyping, allele identification, HRM, and melting curve analysis. The product utilizes side-scan technology, where signals from all channels are collected simultaneously. It has powerful software and hardware functions to meet different needs.
Features
- Strong fluorescence signal with low background noise and high sensitivity.
- Simultaneous 6-channel scanning of 96 samples within 5s.
- Energy-saving, eco-friendly LED light source with long service life and maintenance-free design.
- Automatic hot lid compatible with automated workstations to improve operational efficiency.
- PC-based operation allows a single computer to control multiple instruments.
- Powerful software supports for qualitative/quantitative analysis, HRM, genetic typing, relative quantification, and temperature gradient functions.
Specification
| Model | PCR-Q96-6P |
| Sample Capacity | 96-well plate, 12*8 strips, 96*0.2ml single tubes |
| Consumables | 0.1/0.2ml tubes, 0.1/0.2ml 8-tube strips, 0.1/0.2ml skirtless and semi-skirted 96-well plates (0.2 ml recommended) |
| Reaction Volume | 10~100μL |
| Temperature Range | 0~100°C (Resolution: 0.1°C) |
| Max. Ramp Rate | 8.0°C/s |
| Temp. Control Accuracy | ±0.1°C |
| Uniformity | ±0.20°C |
| Accuracy | ±0.20°C |
| Gradient Spread | 0.1~42°C |
| Hot Lid Temperature | 30~115°C (Adjustable, default 105°C) |
| Lid Operation | Automatic hot lid |
| Temperature Control | Block/Tube |
| Excitation Wavelength | 300nm~810nm |
| Emission Wavelength | 500nm~810nm |
| Detection Channels | 6 channels |
| Detection Method | Simultaneous scanning of all channels |
| Scan Period | 5 seconds for full 96-well scan |
| Factory Calibrated Dyes | F1: FAM/SYBR Green/ EvaGreen; |
| F2: HEX/VIC/JOE/TET/YELLOW; | |
| F3: ROX/Texas Red; | |
| F4: Cy5; | |
| F5: Cy5.5; | |
| F6: Cy3 (customized) | |
| Excitation | Long-life LED |
| Detection | High-sensitivity photoelectric detector |
| Dynamic Range | 1–1010 copies |
| Sensitivity | 1 copy |
| Software Functions | Qualitative/absolute quantification, relative quantification, genotyping, HRM, melting curve, standard curve, allele identification, temperature gradient, etc. |
| Remote Monitoring | Can be connected to laboratory management system |
| Automation Platform | Can be used with automated workstations |
| Data Export Formats | Excel, CSV, TXT, PDF |
| Printing | Direct report printing supported |
| Control Method | 12.1-inch color touchscreen; PC control supported |
| Communication | USB 2.0, RS 232 |
| Electricity | 100~240 VAC, 50~60 Hz |
| Power | 1500W |
| Dimensions (L*W*H) | 520*350*330mm |
| Weight | 32kg |
