- Volume: 0.5-2μL
- Detection Function: Nucleic Acid / Fluorescence / OD600
- Wavelength Range: 190 nm-850 nm
- Optical Path: 0.03 mm, 0.05 mm, 0.1 mm, 0.2 mm, 1 mm
- 7-inch capacitive touchscreen, multi-touch and intuitive interface

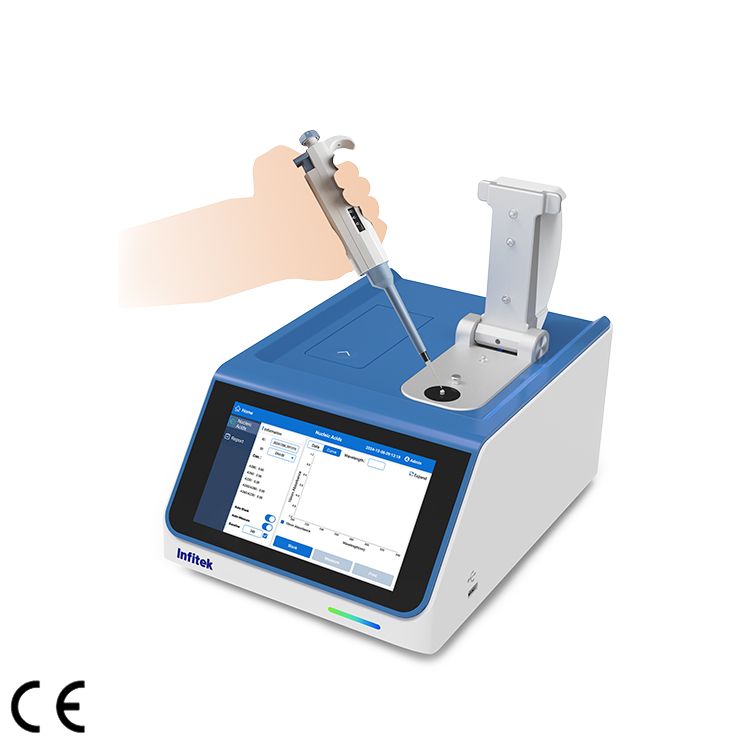

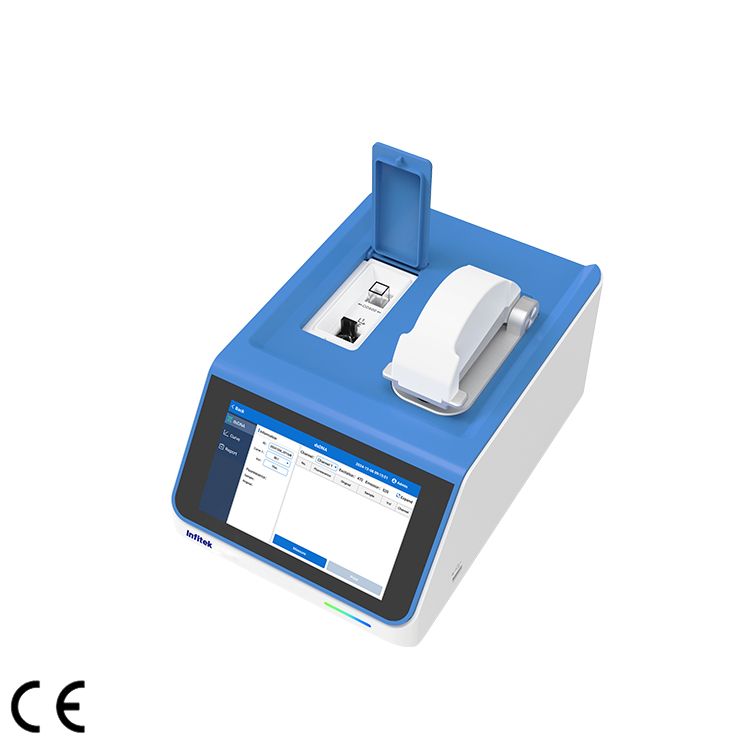

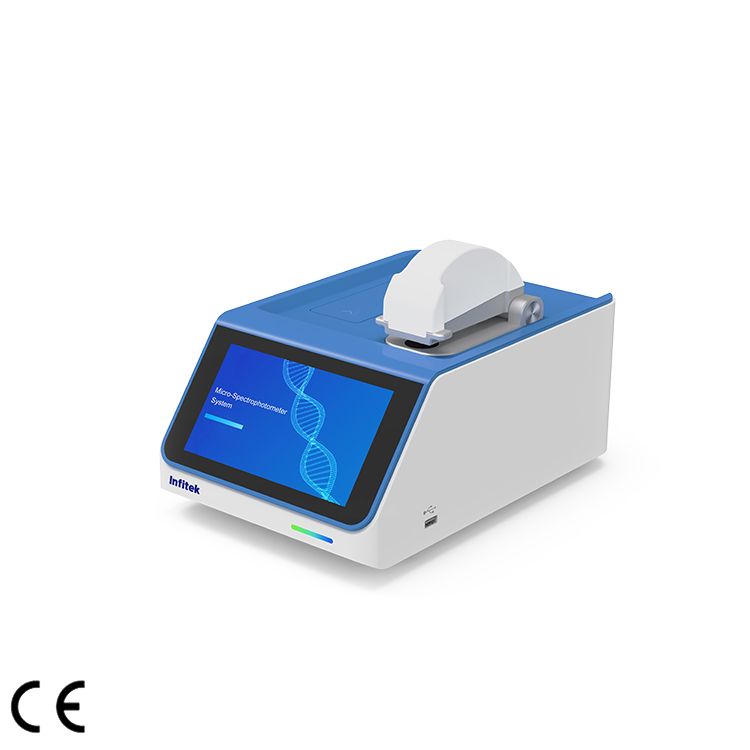

Ultra-Micro Spectrophotometer, SP-601-F
Descripción
Description
The SP-601-F is a full-wavelength micro-spectrophotometer. It can quickly and accurately quantify nucleic acids, proteins, and cell suspensions. It is also equipped with a cuvette mode to measure the concentration of bacterial cultures. The entire workflow is fast, simple, and intuitive.
This device can be used in a wide range of fields, such as clinical diagnostics, blood analysis, forensic identification, environmental microbiology testing, food safety, and molecular biology research.
Features
- 7-inch capacitive TFTscreen, multi-touch, intuitive interface, and simple operation.
- It has an automatic detection function, which significantly improves detection efficiency.
- The sample volume required for testing is only 0.5 to 2μL, and it can be recovered after measurement.
- Driven by a high-precision motor, the optical path accuracy reaches 0.001 mm, ensuring high repeatability in absorbance detection.
Specifications
| Model | SP-601-F |
| Detection Function | Nucleic Acid / Fluorescence / OD600 |
| Volume | 0.5–2 μL |
| Dimensions (L*W*H) | 318*210*188 mm |
| Weight | 4.85 kg |
| Optical System | |
| Optical Path | 0.03 mm, 0.05 mm, 0.1 mm, 0.2 mm, 1 mm |
| Light Source | Xenon flash lamp/number of flashes＞109 |
| Detector Type | 2048 pixel linear array CCD |
| Wavelength Range | 190–850 nm |
| Wavelength Accuracy | ±1 nm |
| Performance Parameters | |
| Spectral Resolution | ≤ 3 nm (FWHM @ Hg 253.7 nm) |
| Absorbance Precision | 0.002Abs (1 mm optical path) |
| Absorbance Accuracy | ±1% (7.332Abs absorbance @ 260nm) |
| Absorbance Range | 0.04-750 (at 260 nm wavelength, equivalent to 10 mm optical path) |
| Concentration Range | 2 ng/μL dsDNA-37500 ng/μL dsDNA |
| Contaminant Detection | EDTA, GTC, Phenol, Protein, Guanidine salts, RNA |
| Detection Time | < 6 s |
| OD600 | |
| Light Source | Single color LED |
| Absorbance Range | 0-4.000 Abs |
| Repeatability | (0, 3) ≤ 0.5%, (3, 4) ≤ 1 .5% |
| Absorbance Accuracy | (0, 2) ≤ 0.005A, (2, 3) ≤ 1%, (3, 4) ≤ 2% |
| Heating Temperature | 37 °C ± 0.5 °C |
| Stirring Speed | 12 adjustable speeds, 100-1200 rpm |
| Fluorescence Detection | |
| Sample Volume | ≥ 50 μL (0.5 mL PCR tube) |
| Detection Time | 4 s |
| Detection Channels | 2 channels |
| Repeatability | < 1.5% |
| Stability | < 1.5% |
| Linearity | R2 ≥ 0.995 |
| Light Source | Single color LED |
| Excitation Wavelength | 470 nm, 624 nm |
| Emission Wavelength | 525 nm, 692 nm |
| Other Performance | |
| Printing/Interface | Built-in thermal printer, USB 2.0 × 2 |
| Data Export Formats | xls, csv, txt, jpg, png |
| Experimental Data | ＞10,000 |
| Power Supply | DC 12V 5A, 60W |
